This article explains how to handle, transport, store, and ship the GX1 so it stays within calibration and in good working order. The GX1 is a precision survey instrument: handle it carefully to protect its calibration and accuracy.
Handling
Treat the GX1 as a precision instrument. Impacts, drops, and rough handling can affect calibration and accuracy, even when no damage is visible.
The IP65 rating protects against dust and water ingress, not impact, so protect the GX1 from knocks and drops.

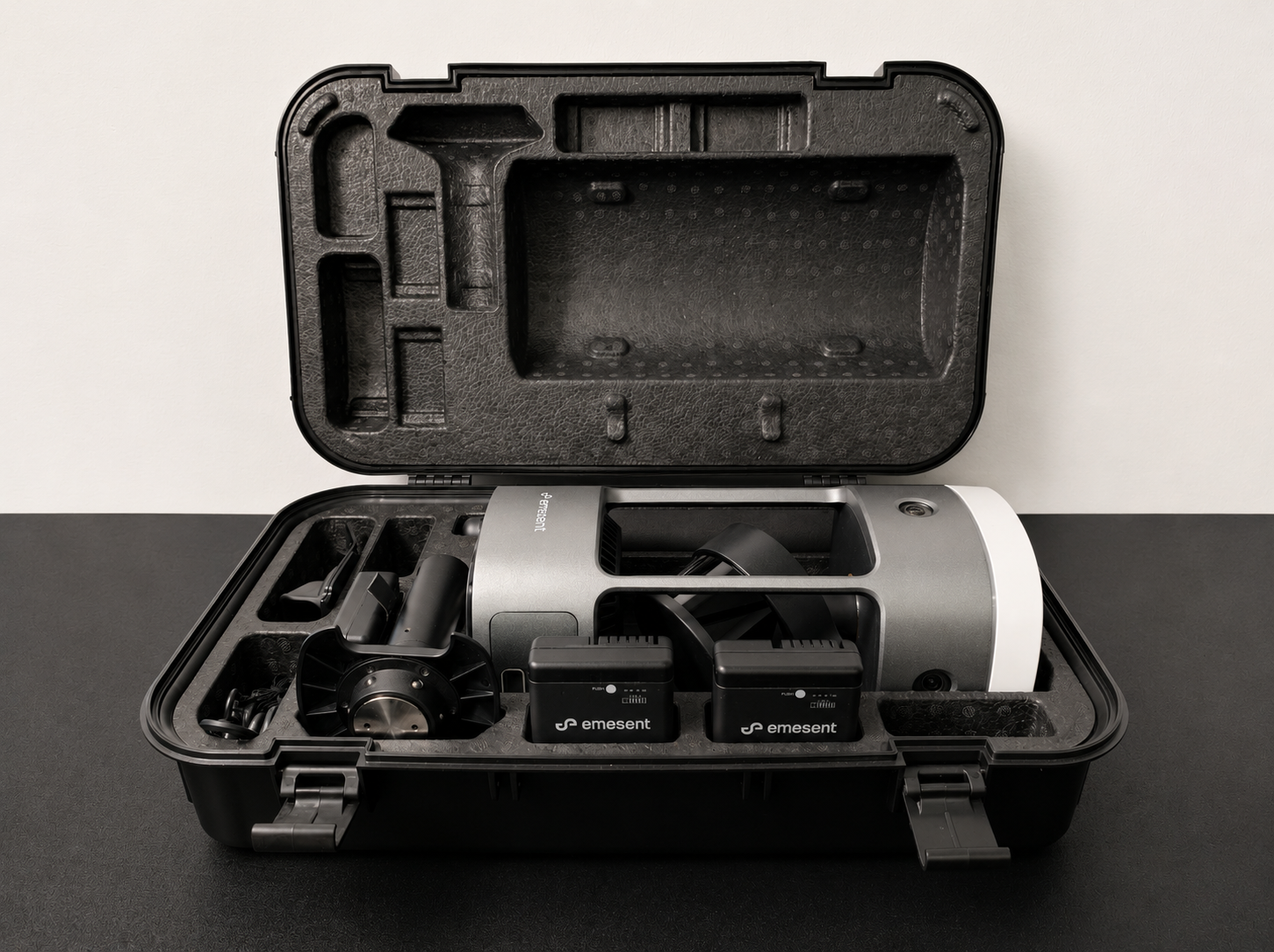

Keep the GX1 in its GX1 hard case whenever it is not mounted for a scan, and lift and set it down deliberately.
If the GX1 is dropped or takes a significant impact, follow GX1 maintenance and service before scanning again.
Transport
Fit the GX1 Hood over the top of the GX1 to cover the cameras before transport, protecting the optics.
Transport the GX1 in its closed hard case to protect it against impact, dust, and moisture in transit.
Handle the hard case with care and protect it from impact; do not throw or drop it.
During transport, secure the hard case so it cannot slide, tip, or sustain repeated impacts.
Keep the hard case away from direct sunlight and heat sources.
Storage
Store the GX1 clean and dry in its hard case, within its rated range of -10°C to 45°C (14°F to 113°F).
Keep the GX1 Hood fitted over the cameras while the GX1 is stored.
Avoid prolonged exposure to extreme heat, cold, direct sunlight, or damp.
Remove the batteries from the GX1 before storing it. See GX1 batteries.
Shipping
Ship the GX1 in its hard case, inside a cardboard box that protects the hard case from impact.
To return the GX1 to Emesent for service or repair, contact Emesent support first for shipping instructions. See How to contact support.
GX1 batteries are lithium-ion and subject to dangerous-goods regulations when shipped. Follow standard regional dangerous-goods practice for the carrier and transport mode, including any state-of-charge requirement.
Original packaging is not usually required for returns. If the battery is damaged or affected, contact Emesent support before shipping.
