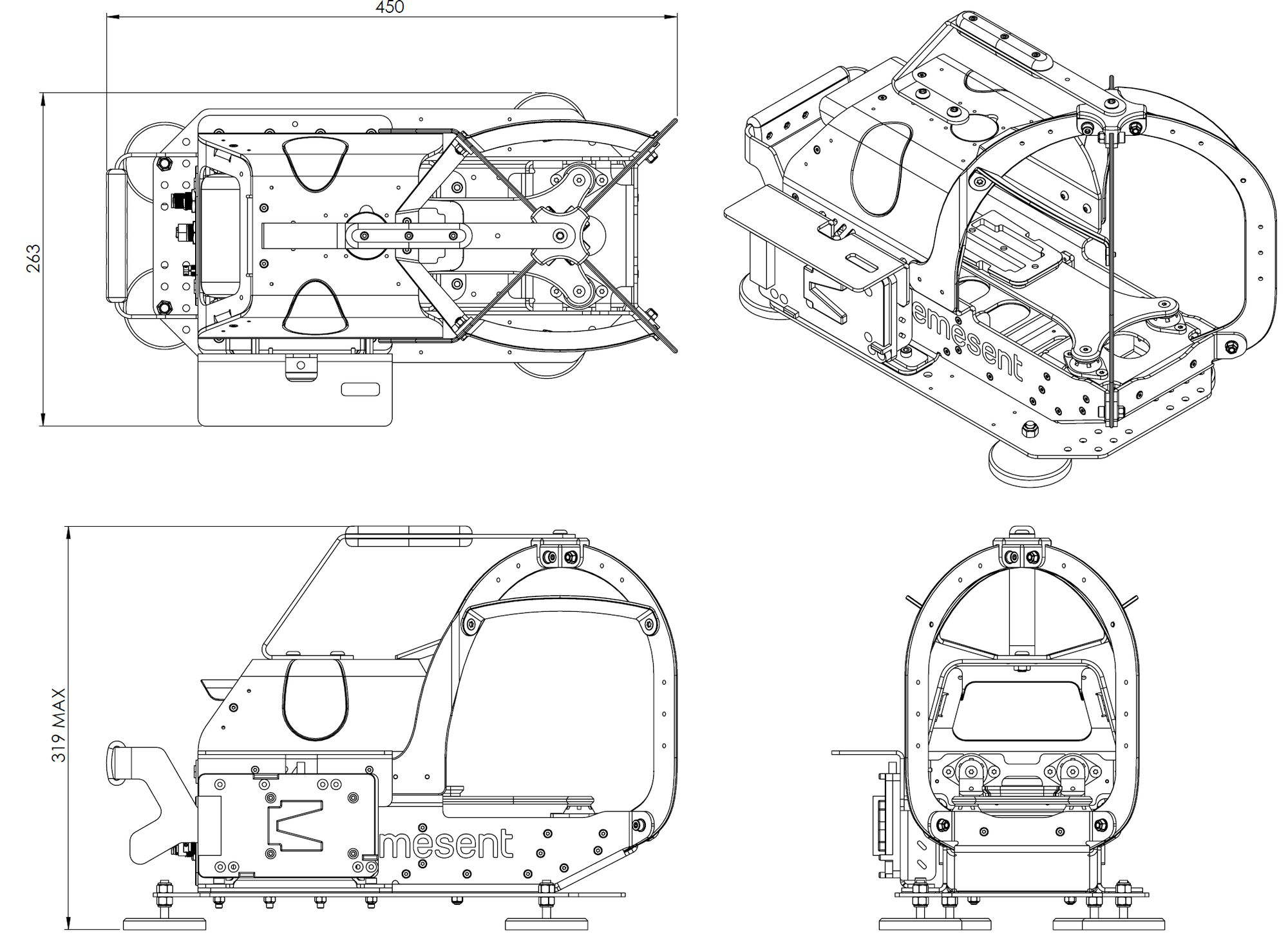

Length | 450mm |
Width | 263mm |
Height | 319mm @ maximum magnet extension |
Emesent Product Compatibility
Commander and Cortex Compatibility for LHD
LHD is now fully supported in the mainline releases of Commander and Cortex. Separate LHD-specific builds are no longer required. For the best experience with LHD, use the latest versions available from the Emesent Software Downloads page.
Legacy versions, such as Commander 1.5.1 for LHD, were previously required but are now obsolete and can be retired from use.
Product | Compatible |
|---|---|
Hovermap ST | Yes |
Hovermap ST-X1 | Yes1 |
Hovermap ST/ST-X w/ LRR2 | No2 |
Hovermap ST/ST-X w/ colorization3 | No3 |
Hovermap ST/ST-X w/ LRR colorization | No |
Commander Prototype | Yes |
LHD with LRR Incompatibility
The LRR must be removed. LRR thermal performance cannot be guaranteed in LHD Mount.1
A Hovermap ST or ST-X with a calibrated LRR colorization system cannot fit into the LHD Mount.2
The Colorization mounting bracket can remain attached to the Hovermap ST or ST-X, but the camera cannot be fitted.3

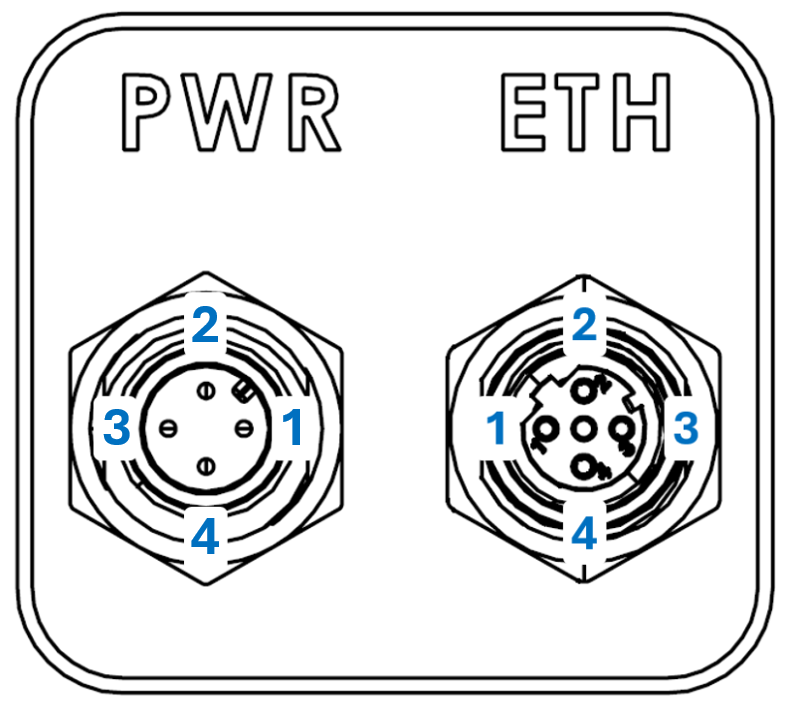

M12 Connector Pinouts
The following section displays the pinout for the LHD Mount back panel connectors.
Power (PWR) (14V-48V) | Ethernet (ETH) | ||
|---|---|---|---|
Pin | Designation | Pin | Designation |
1 | Power + | 1 | ETH_TX_P |
2 | NC | 2 | ETH_RX_P |
3 | GND | 3 | ETH_TX_N |
4 | NC | 4 | ETH_RX_N |

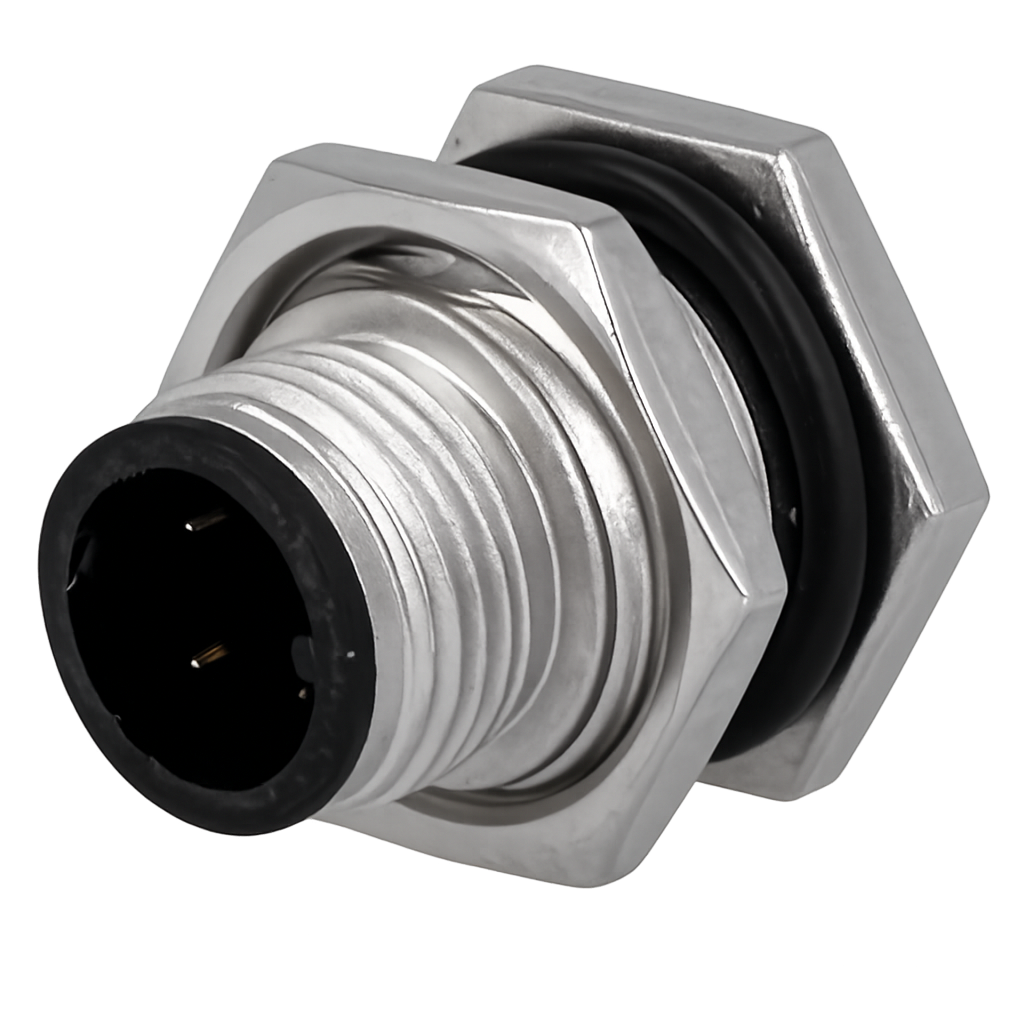

M12 connector (M12A-04PMMP-SF8001)

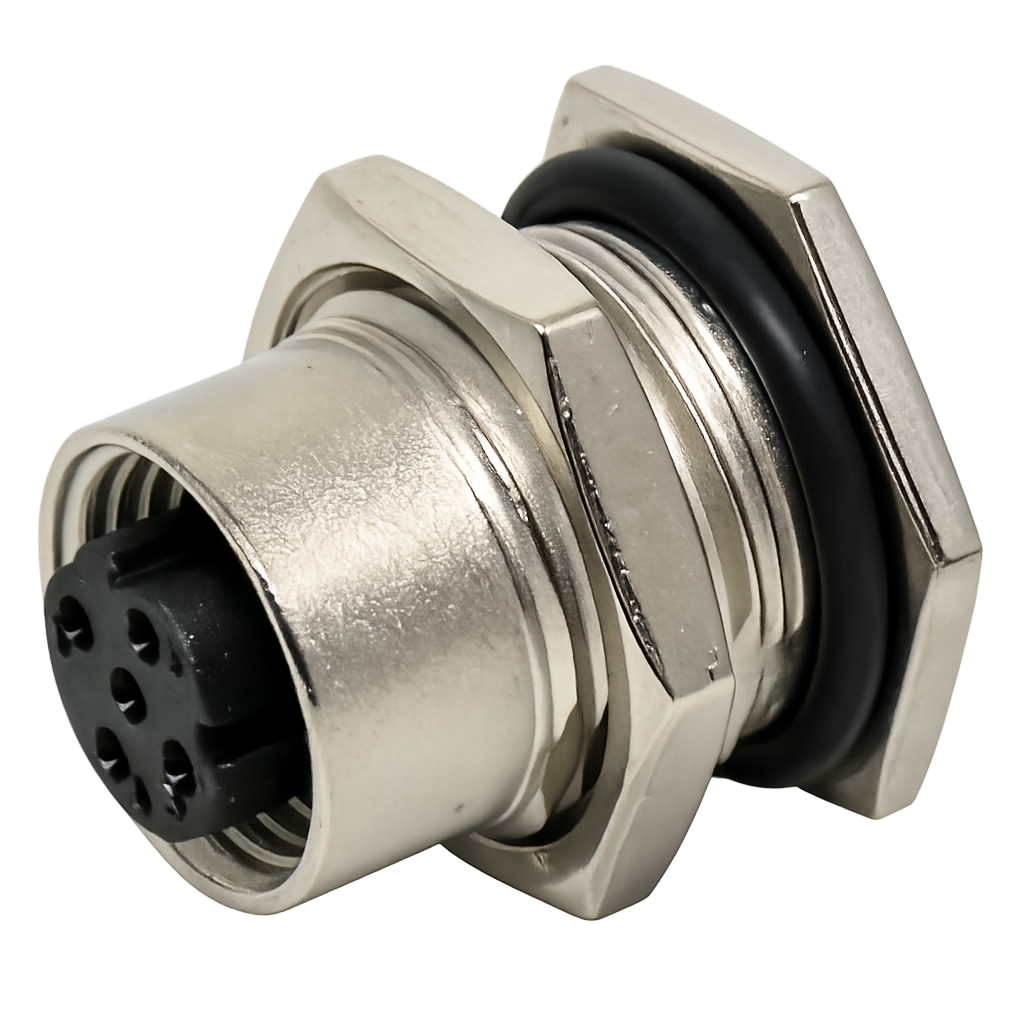

| M12 connector (M12D-04PFFP-SF8001)
| ||
