      Setup the Backpack RTK Mount and Receiver

      Follow these six steps to setup your GNSS receiver with the Backpack RTK Mount

      1. Upgrade to the latest Emesent Cortex version (3.3 or later). Refer to the article Upgrade Emesent Cortex for more information.

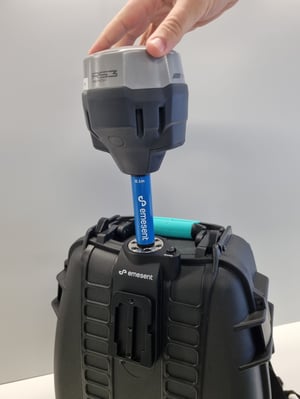

      2. Attach the spacer pole to the backpack until fully screwed in then attach the GNSS receiver to the other end of the spacer pole.

      spacer pole   GNSS receiver

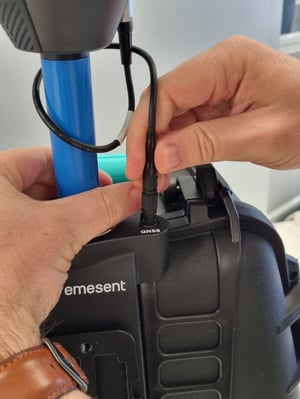

      3. Connect the data cable into the GNSS receiver’s EXT port then connect the other end to the backpack's GNSS port.

      EXT port   GNSS port

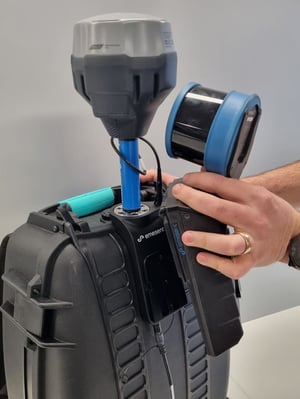

      4. Connect the Hovermap cable into the backpack connector then mount the Hovermap.

      backpack connector    mount the hovermap

      5. Connect the other end of the Hovermap cable to the Hovermap then attach the battery.

      Hovermap cable   Hovermap battery

      6. Turn on the GNSS receiver and configure it to receive corrections from the selected base (i.e. CORS, local base, etc.).

      The settings only need to be set up if you are using the GNSS receiver for the first time, have just upgraded the firmware, or have changed them for another use case.
